Products


    U-X (for Precast Application)

Labeled Diagram 4
U-X-Horizontal
  • All sleeves meet Type 1 & Type 2 requirements of ACI 318.
  • ICC-ES ESR-3433
  • All sleeves can connect rebars of the same size or up to 2 sizes smaller than the sleeve size.
    (Minimum embedment length must follow sleeve size)
  • Can be epoxy or galvanized coating.
  • Set Screw option to lock rebar in place at the time of plant operation.

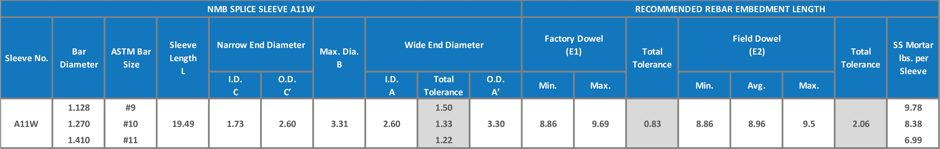

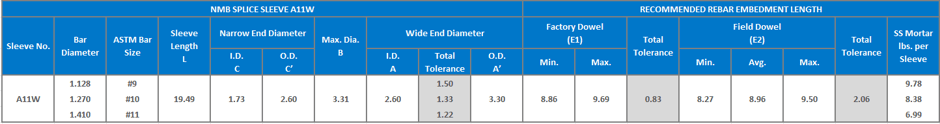

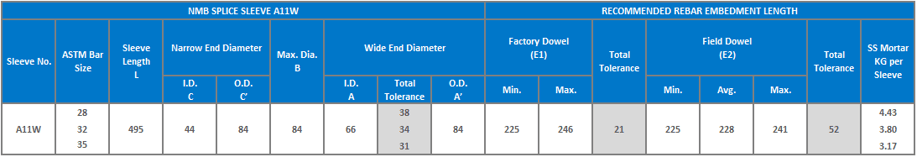

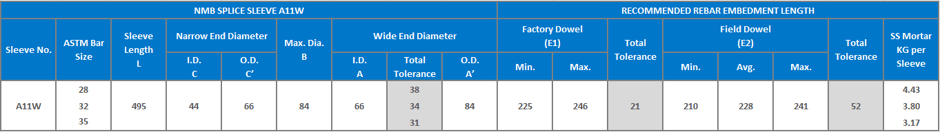

A11W (for Precast Application)

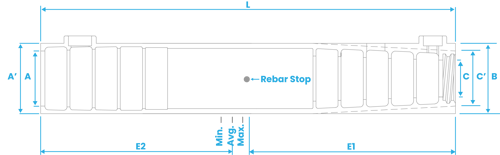

A11W Diagram without Rebar Stop

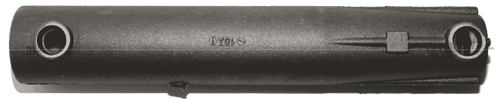

A11W Horizontal

A11W is specifically designed for improved usability.

  • More tolerance
  • Imperial & inch PVC pipe ports
  • Screw in type plug
  • All sleeves meet Type 1 & Type 2 requirements of ACI 318.
  • ICC-ES ESR-3433
  • All sleeves can connect rebars of the same size or up to 2 sizes smaller than the sleeve size.
    (Minimum embedment length must follow sleeve size)
  • Can be epoxy or galvanized coating.
  • Set Screw option to lock rebar in place at the time of plant operation.
SLIM-SLEEVE (for Cast-in-Place Application)

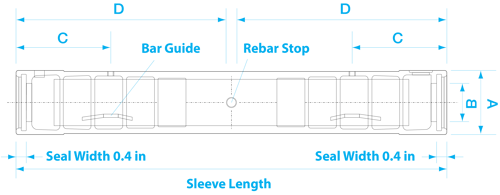

Slim-Sleeve Dimensions Diagram Inlet to the Right
SLIM-SLEEVE Horizontal

SLIM-SLEEVE is designed for cast-in-place construction, horizontal and vertical connections.

  • Supplied with Set Screws and Slim Plugs. Rebar stop option for vertical application.
  • Ample tolerance for cast-in-place bar connection, or closure-pour between precast members.
  • All sleeves meet Type 1 & Type 2 requirements of ACI318.
  • ICC-ES ESR-3141
  • All sleeves can connect rebars of the same size or up to 2 sizes smaller than the sleeve size.
    (Minimum bar embedment length must follow the sleeve size)
  • Can be epoxy or galvanized coating.

SS Mortar

SS Mortar Vertical-02

SS Mortar (Splice Sleeve Grout) is a Non-Shrink, Non-Metallic, High Strength grout Specifically designed for the system.

  • All sleeves must be filled completely with SS Mortar. No other grout can be used for NMB Splice Sleeve System.
  • Must be mixed with 1 Gallon of water and 1 bag of SS Mortar. No partial bag.
  • Mixing time: 2.5 minutes.

HGMB Website-01
HGMB Horizontal

Concrete Crack Reduction Device

  • Crack Reduction
  • Easy Placement
  • Economical
  • Precast & Cast-in-Place
