For Precast Application



U-X

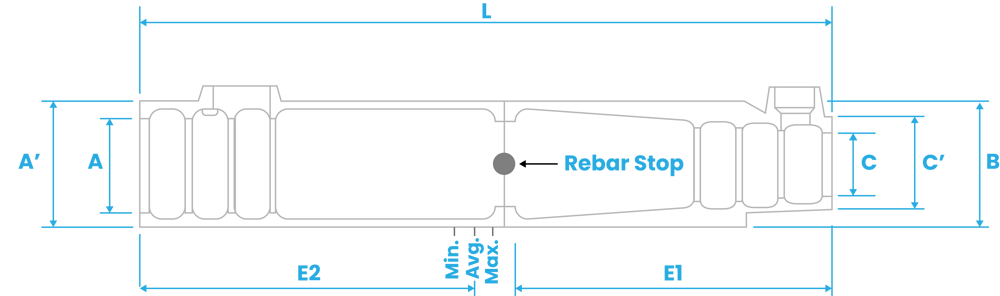

Labeled Diagram 4
  • All sleeves meet Type 1 & Type 2 requirements of ACI 318.
  • ICC-ES ESR-3433
  • All sleeves can connect rebars of the same size or up to 2 sizes smaller than the sleeve size.
    (Minimum embedment length must follow sleeve size)
  • Can be epoxy or galvanized coating.
  • Set Screw option to lock rebar in place at the time of plant operation.
A11W

Labeled Diagram 4

A11W is specifically designed for improved usability.

  • More tolerance
  • Imperial & inch PVC pipe ports
  • Screw in type plug
  • All sleeves meet Type 1 & Type 2 requirements of ACI 318.
  • ICC-ES ESR-3433
  • All sleeves can connect rebars of the same size or up to 2 sizes smaller than the sleeve size.
    (Minimum embedment length must follow sleeve size)
  • Can be epoxy or galvanized coating.
  • Set Screw option to lock rebar in place at the time of plant operation.

For Cast-In-Place Application

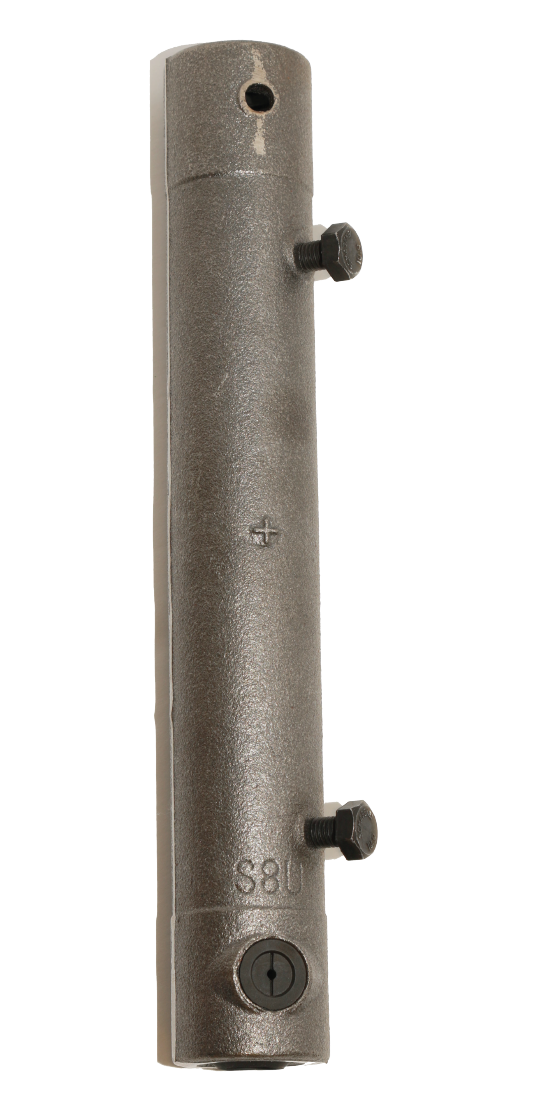

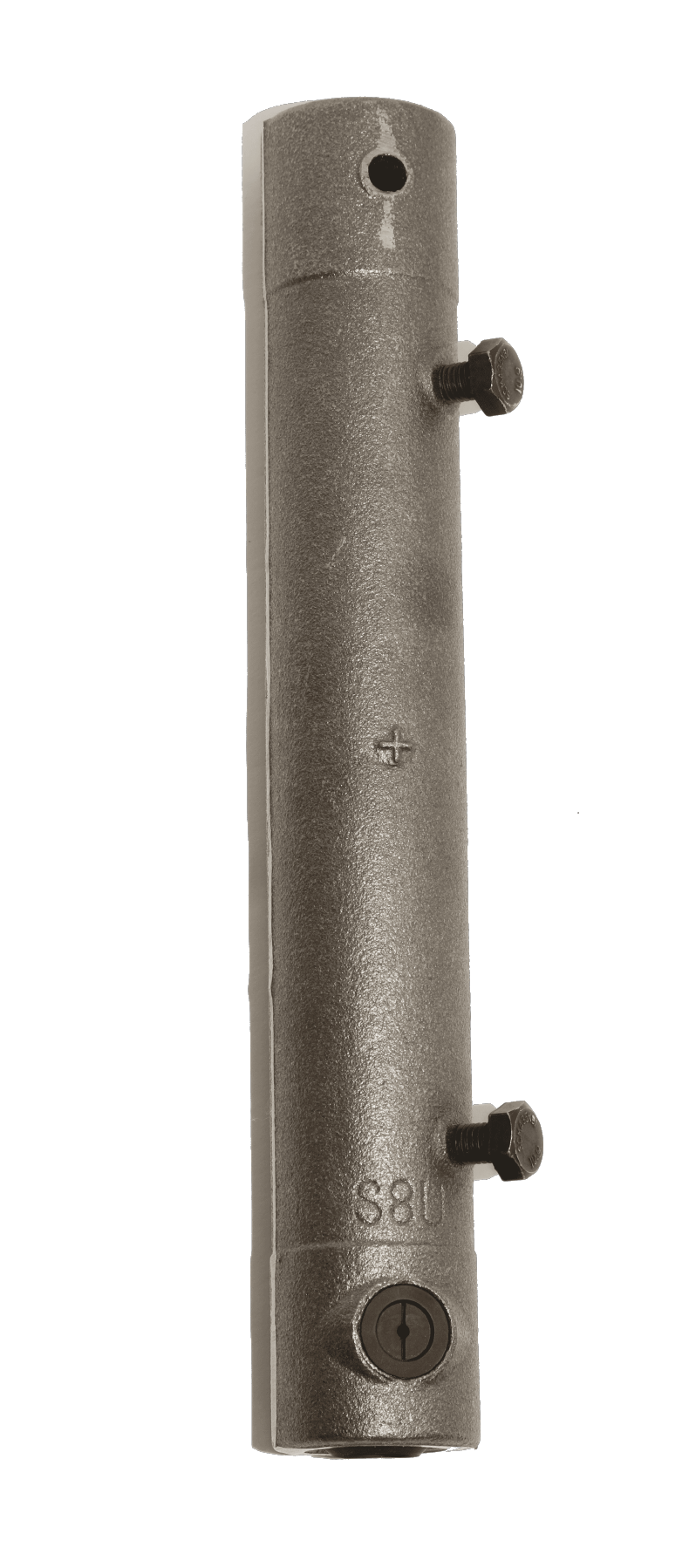

Slim-Sleeve

Slim-Sleeve with Labels-1

SLIM-SLEEVE is designed for cast-in-place construction, horizontal and vertical connections.

  • Supplied with Set Screws and Slim Plugs. Rebar stop option for vertical application.
  • Ample tolerance for cast-in-place bar connection, or closure-pour between precast members.
  • All sleeves meet Type 1 & Type 2 requirements of ACI318.
  • ICC-ES ESR-3141
  • All sleeves can connect rebars of the same size or up to 2 sizes smaller than the sleeve size.
    (Minimum bar embedment length must follow the sleeve size)
  • Can be epoxy or galvanized coating.

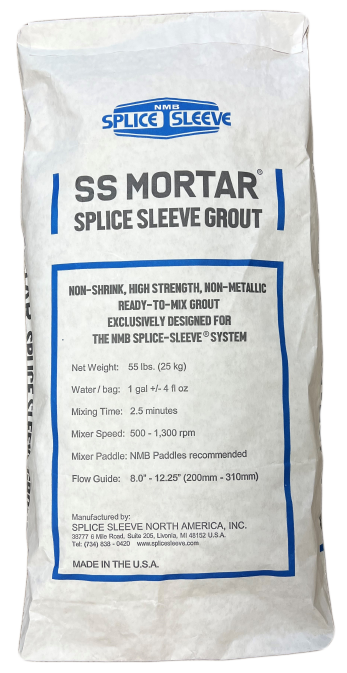

SS Mortar (Splice Sleeve Grout)

SS Mortar-04-min

SS Mortar (Splice Sleeve Grout) is a Non-Shrink, Non-Metallic, High Strength grout Specifically designed for the system

  • All sleeves must be filled completely with SS Mortar. No other grout can be used for NMB Splice Sleeve System.
  • Must be mixed with 1 Gallon of water and 1 bag of SS Mortar. No partial bag.
  • Mixing time: 2.5 minutes.

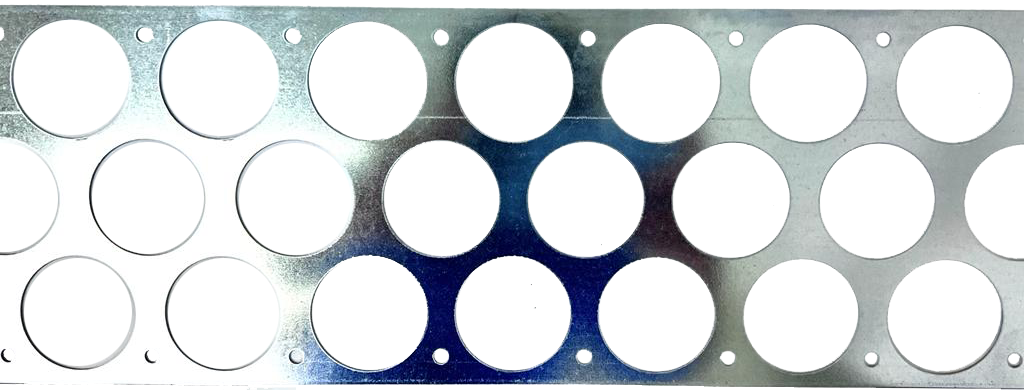

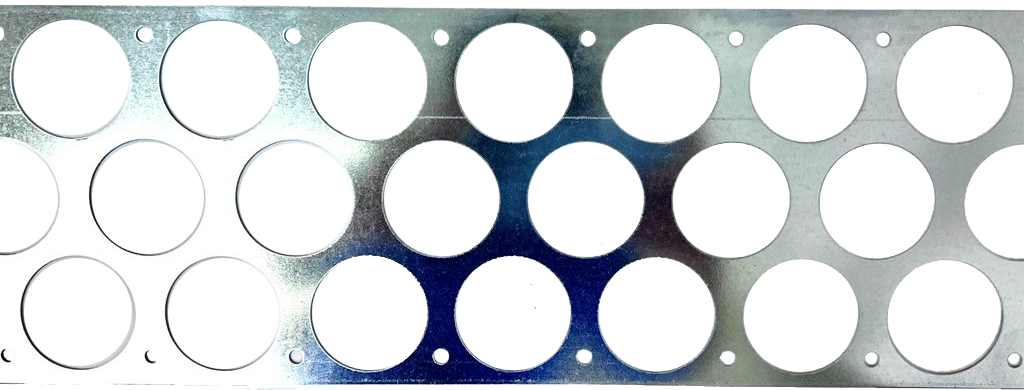

HiGRIP METALBAND

HiGRIP-1

Concrete Crack Reduction Device

  • Crack Reduction
  • Easy Placement
  • Economical
